Used FERROMATIK MILACRON K200-2F
Producer
FERROMATIK MILACRON
Type
K200-2F
Year
1998
Clamping unit
Clamping force
200 ton
Opening stroke
750 mm
Distance between tie bars
560x560 mm
Mould height min.
295 mm
Opening width
1045 mm
Platen size (h x v)
830x935 mm
Injection unit
Screw diameter
60+50 mm
Injection volume
636+314 cm³
Shot weight
579+286 g
Injection pressure
1575+1568 bar
Measurements and weight
Dimensions
6,87 x 2,1 x 2,55 m
Machine weight
13.000 kg
Additional information & extras

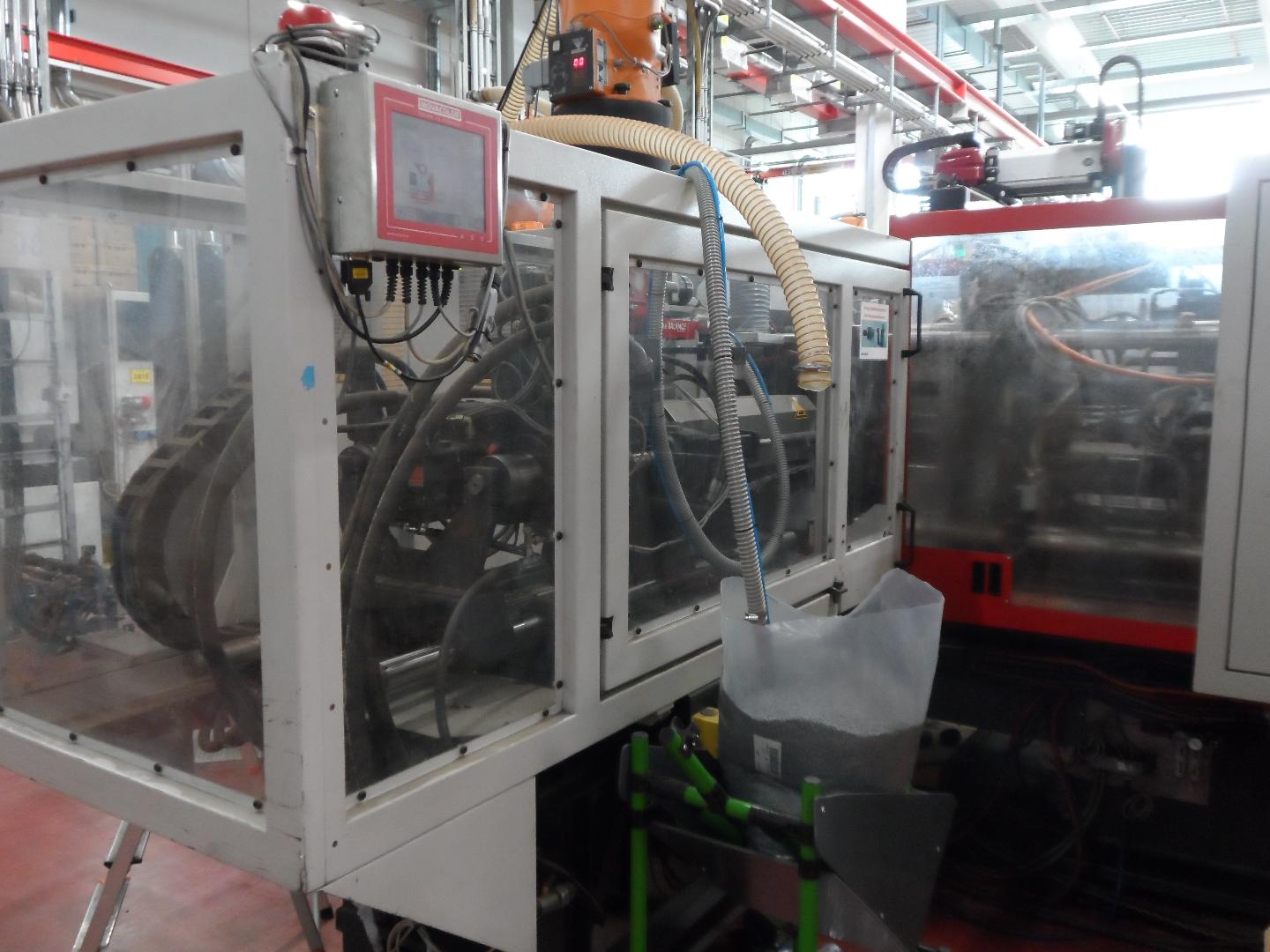

Rotary table
Polarform Typ 650
